设计

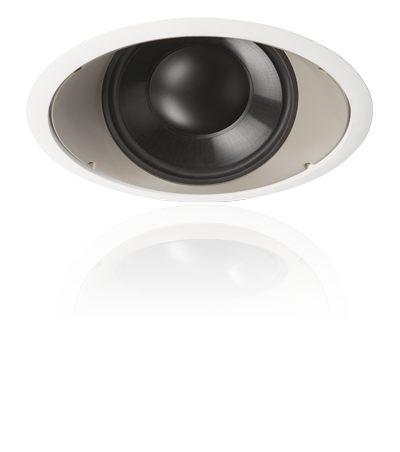

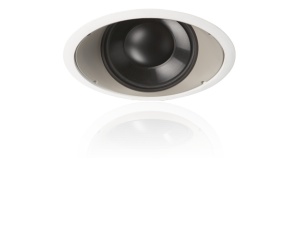

Single high-excursion driver, in-ceiling, combination die-cast and GRIP™ chassis / mounting bracket

低音单元

210-mm (8 in) CFP™ cone, 38-mm (1-1/2 in) voice-coil, over-molded TPR™ surround, high-temperature polyamide former, ceramic / ferrite magnet structure

低音下潜

19 Hz (DIN)

颜色

White, paintable

重量

5.2 lbs. (2.6 kg)

Overall 尺寸

11.625" (29.6cm) Diameter

Cut-Out 尺寸

10.625" (27.0cm) Diameter

最小安装深度
Depth required is the distance
between 1/2" drywall, or similar material.

5.875" (14.8cm)

最少内部容积

0.77 cu ft (22 L)

需要背箱
单独出售

bx-10r
