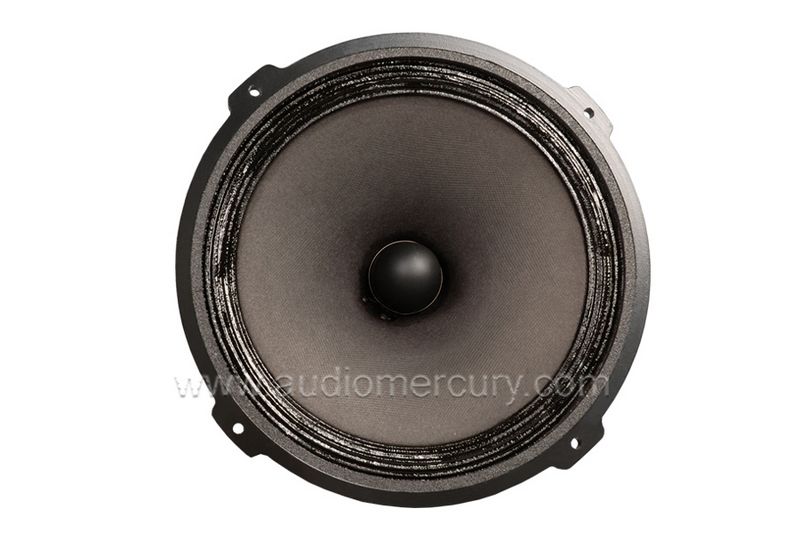

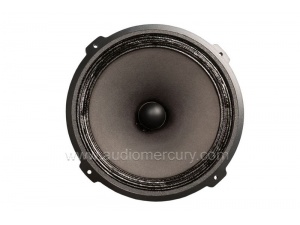

Supravox赛博威声 215EXC 8英寸全频喇叭
|
215EXC 全频喇叭参数
|
|||
|
Efficiency 1W/1m at Fs
效率 1W/1m at Fs
|
90~99dB
|
Sd
|
283cm2
|
|
Frequency response
频响
|
50~20kHz
|
Fs
|
49Hz
|
|
Impedance
阻抗
|
4Ω
|
Mms
|
7g
|
|
Power max. RMS
最大不失真功率
|
20W
|
Cms
|
1
|
|
Weight
重量
|
7.1kg
|
Re DC
|
4Ω
|
|
Suspension
悬边
|
5层纸摺边
|
|
|
|
Resonance frequency
谐振频率
|
50Hz
|
|
|
|
Linear excursion
线性位移
|
± 5mm
|
|
|
|
Power supply
电量供给
|
0~12伏 CC.
|
|
|
|
Magnetic field
磁通量
|
0~2T
|
|
|
|
Diameter HP
喇叭直径
|
227/237mm
|
|
|
|
Frame thickness
盆架安装高度
|
铝合金 10mm
|
|
|
|
Diameter fixation holes
安装直径
|
227mm
|
|
|
|
Diameter drilling enclosure
箱体开孔直径
|
212mm
|
|
|
|
Depth HP
喇叭深度
|
147mm
|
|
|
|
备注：
上述之参数及曲线图由LAUD2软件测量所得，均由Supravox原厂提供。
|
|||
|
零售价RMB：￥32,120/对pair
|
|||
