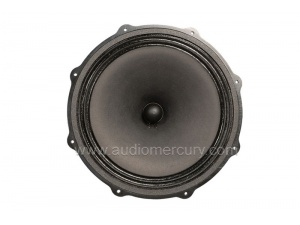

Supravox赛博威声 285EXC 12英寸中低音喇叭
|
285EXC 中低音喇叭参数
|
|||
|
Efficiency 1W/1m at Fs
效率 1W/1m at Fs
|
93~102dB
|
Sd
|
471cm2
|
|
Frequency response
频响
|
50~7kHz
|
Fs
|
53Hz
|
|
Impedance
阻抗
|
8Ω
|
Mms
|
18.5g
|
|
Power max. RMS
最大不失真功率
|
70W
|
Cms
|
0.49
|
|
Weight
重量
|
7.5kg
|
Re DC
|
6.5Ω
|
|
Suspension
悬边
|
3层纸摺边
|
|
|
|
Resonance frequency
谐振频率
|
50Hz
|
|
|
|
Linear excursion
线性位移
|
± 4mm
|
|
|
|
Power supply
电量供给
|
0~12伏 CC.
|
|
|
|
Magnetic field
磁通量
|
0~1.6T
|
|
|
|
Diameter HP
喇叭直径
|
290/307mm
|
|
|
|
Frame thickness
盆架安装高度
|
铝合金 8mm
|
|
|
|
Diameter fixation holes
安装直径
|
294mm
|
|
|
|
Diameter drilling enclosure
箱体开孔直径
|
280mm
|
|
|
|
Depth HP
喇叭深度
|
180mm
|
|
|
|
备注：
上述之参数及曲线图由LAUD2软件测量所得，均由Supravox原厂提供。
|
|||
|
零售价RMB：￥26,220/对pair
|
|||
