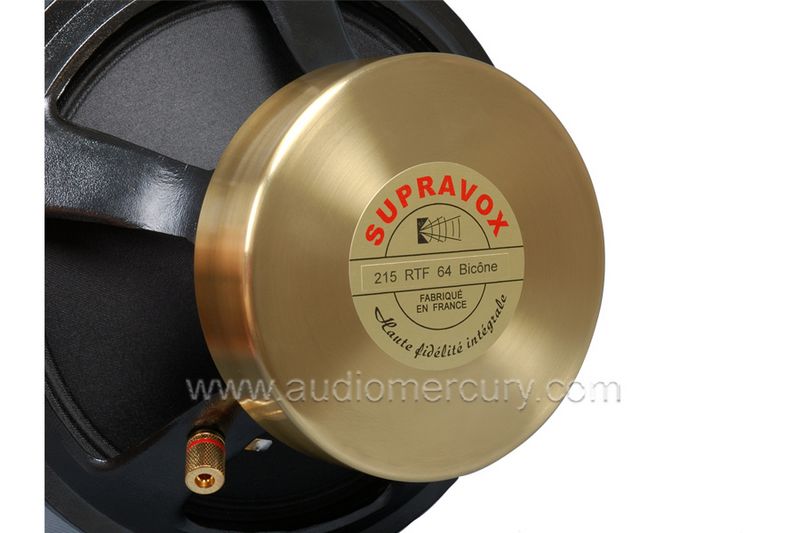

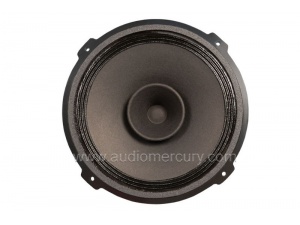

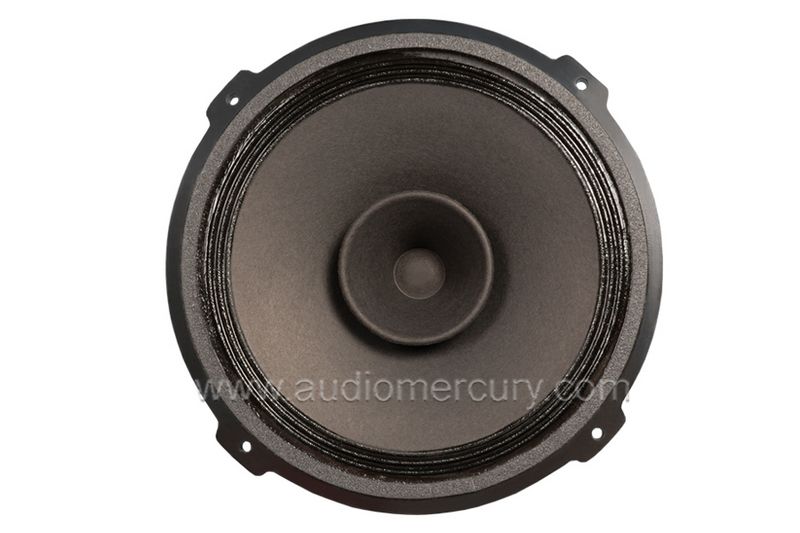

Supravox赛博威声 215RTF 64 Bicone 8英寸全频喇叭
|
215RTF Bicone 全频喇叭参数
|
|||
|
Efficiency 1W/1m at Fs
效率 1W/1m at Fs
|
96dB
|
Fs
|
52Hz
|
|
Frequency response
频响
|
50~20kHz
|
Re
|
6.5Ω
|
|
Impedance
阻抗
|
8Ω
|
Qts
|
0.53
|
|
Power max. RMS
最大不失真功率
|
35W
|
Qe
|
0.6
|
|
Weight
重量
|
2.8kg
|
Qm
|
5
|
|
Suspension
悬边
|
3层纸摺边
|
Vas
|
75L
|
|
Linear excursion
线性位移
|
4mm
|
Bl
|
5.3
|
|
Magnet diameter
磁铁直径
|
120mm
|
Cms
|
0.8
|
|
Magnetic field
磁通量
|
1.5T
|
Mms
|
9.5g
|
|
Diameter HP
喇叭直径
|
224/237mm
|
Sd
|
263cm2
|
|
Frame thickness
盆架厚度
|
铝合金 10mm
|
|
|
|
Diameter fixation holes
安装直径
|
227mm
|
|
|
|
Diameter drilling enclosure
箱体开孔直径
|
212mm
|
|
|
|
Depth HP
喇叭深度
|
100mm
|
|
|
|
备注：
上述之参数及曲线图由LAUD2软件测量所得，均由Supravox原厂提供。
|
|||
|
零售价RMB：￥6,430/对pair
|
|||
