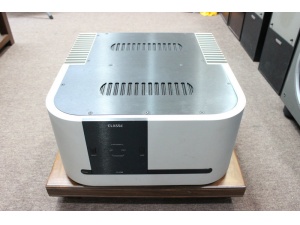

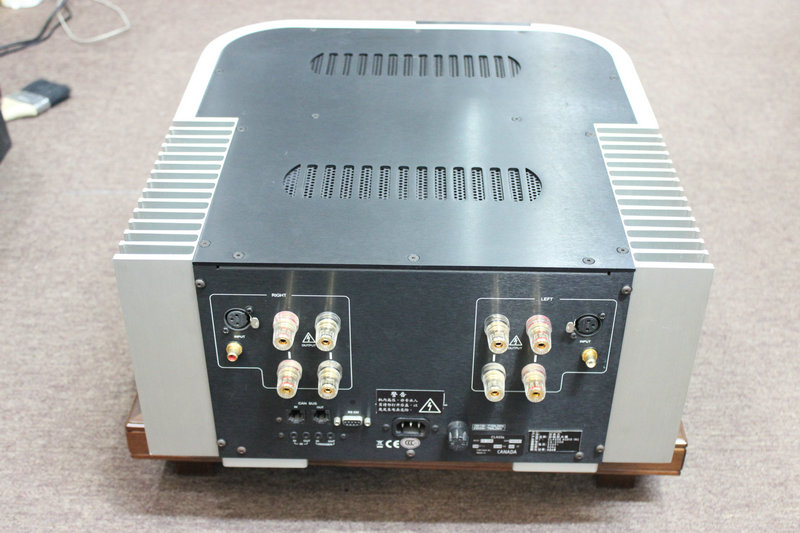

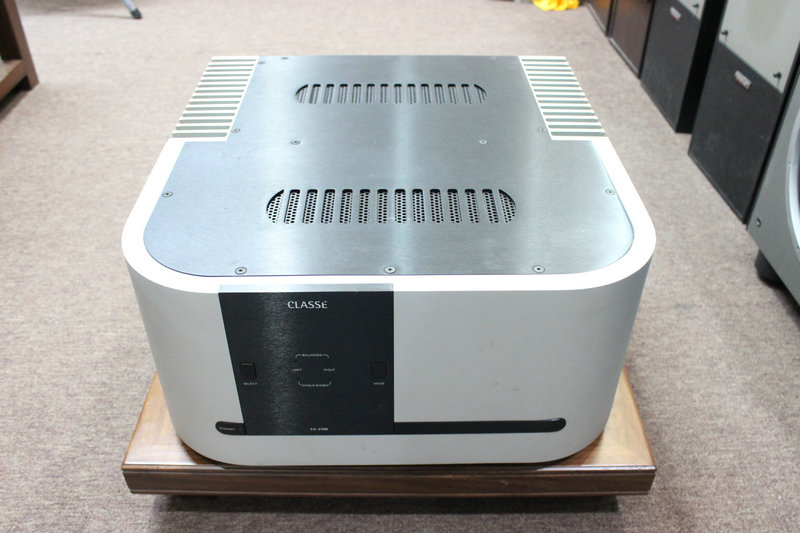

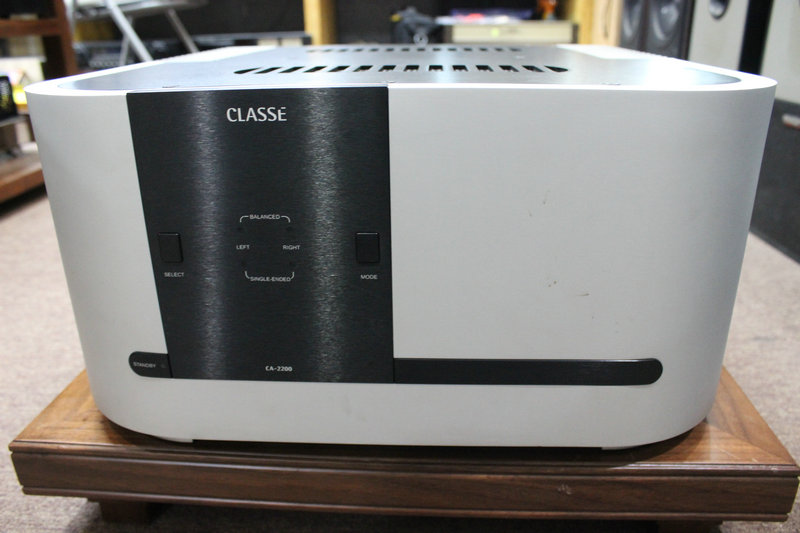

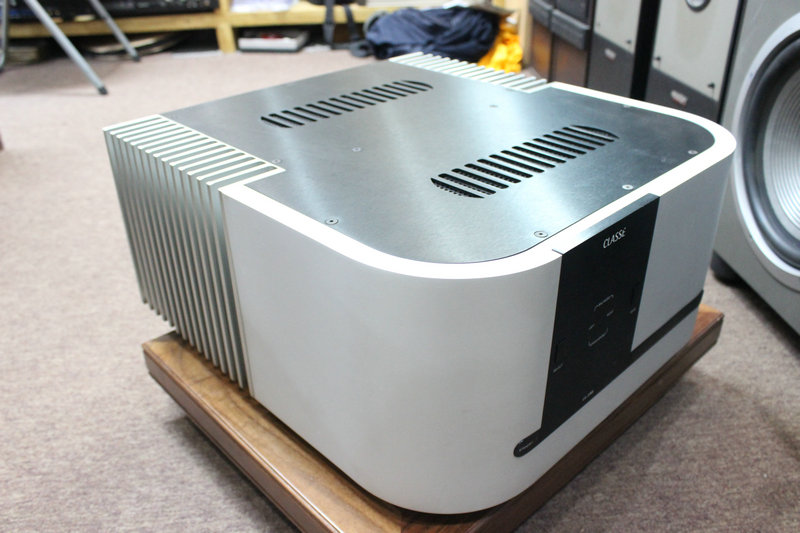

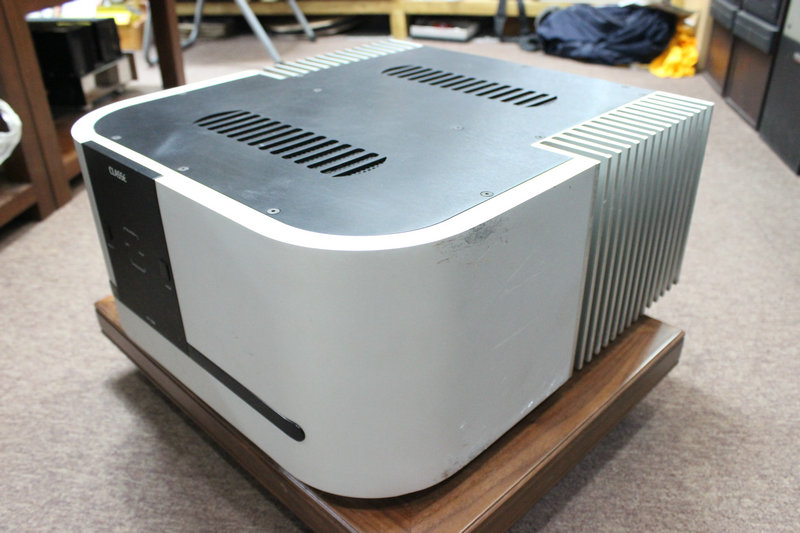

加拿大驾势Classe CA-2200后级
新款驾势 CA-2200 功放
voltage gain 29.1dB
bandwidth 155kHz (-3dB)
22kHz (-0.1dB)
phase < -10° (22kHz)
sensitivity 1.4Vrms
power/channel (continuous)
(120VAC line, 1kHz signal regulated to 1% THD + noise into resistive load, all channels driven)
load (resistive)
8Ω 200W
4Ω 400W
THD + noise (unweighted, 10Hz - 500kHz bandwidth, 1Vrms/1kHz input)
load (resistive)
none 0.002%
8Ω 0.003%
4Ω 0.005%
noise FFT noise floor peaks all below –95dBV
(with terminated inputs)
S/N ratio (relative to 1kHz sine wave full level output into 8Ω)
108dB
