设计

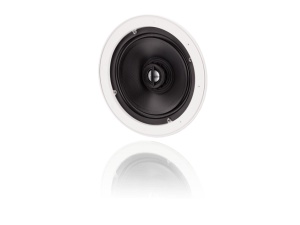

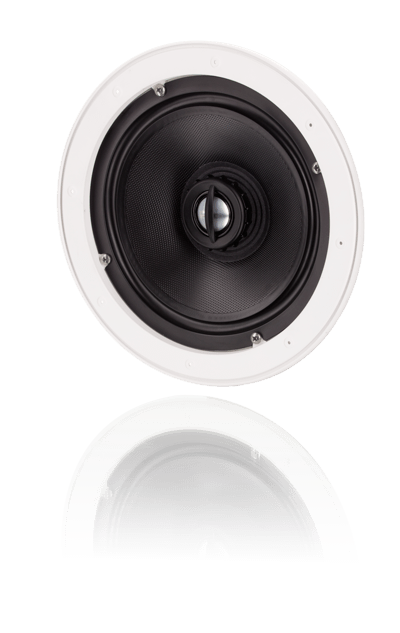

2-driver, 2-way in-ceiling / in-wall, stainless steel grilles, Xtreme Moisture Application™ version, GRIP™ chassis / mounting bracket

分频器

2nd-order electro-acoustic at 2.5 kHz

频率响应   On-Axis

±2 dB from 60 Hz - 22 kHz

频率响应   30° 离轴

±2 dB from 60 Hz - 20 kHz

高音单元

25-mm (1 in) S-PAL™ dome, die-cast heatsink

Mid/Bass Frequency Driver

210-mm (8 in) mineral-filled polypropylene cone

低音下潜

45 Hz (DIN)

灵敏度   房间/消声室

91 dB / 87 dB

阻抗

Compatible with 8 ohms

合适的放大器功率范围 Range

15 - 110 watts

最大输入功率

80 watts

颜色

White, paintable

重量

3.9 lbs. (1.8 kg)

Overall 尺寸

8.9375" (22.6cm) Diameter

Cut-Out 尺寸

7.875" (20.0cm) Diameter

最小安装深度
Depth required is the distance
between 1/2" drywall, or similar material.

3.25" (8.3cm)

最少内部容积

0.70 cu ft (20 L)
