设计

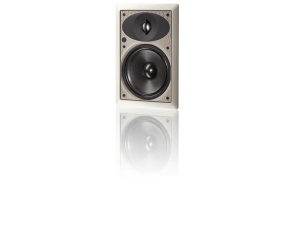

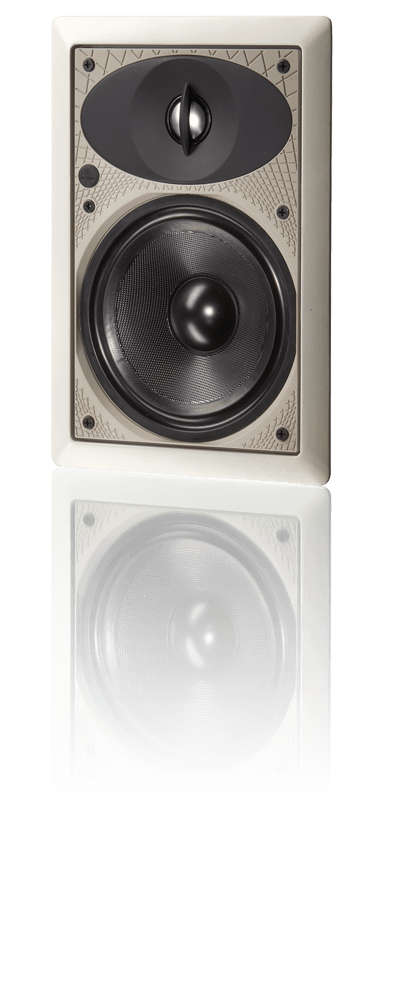

2-driver, 2-way in-wall/ in-ceiling, die-cast chassis / mounting bracket

分频器

2nd-order electro-acoustic at 2.0 kHz

频率响应   On-Axis

±2 dB from 65 Hz - 22 kHz

频率响应   30° 离轴

±2 dB from 65 Hz - 20 kHz

高音单元

25-mm (1 in) S-PAL™ dome, die-cast heatsink

Mid/Bass Frequency Driver

165-mm (6-1/2 in) mineral-filled polypropylene cone

低音下潜

50 Hz (DIN)

灵敏度   房间/消声室

91 dB / 87 dB

阻抗

Compatible with 8 ohms

合适的放大器功率范围 Range

15 - 120 watts

最大输入功率

90 watts

颜色

White, paintable

重量

7 lbs. (3.2 kg)

Overall 尺寸

11.25" (28.4cm) Height
7.8125" (19.8cm) Width

Cut-Out 尺寸

10.25" (26.0cm) Height
6.75" (17.2cm) Width

最小安装深度
Depth required is the distance
between 1/2" drywall, or similar material.

3.75" (8.3cm)

最少内部容积

0.42 cu ft (12 L)
