设计

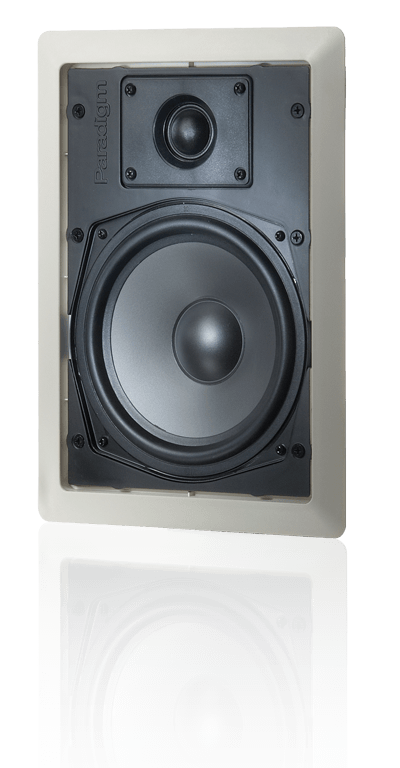

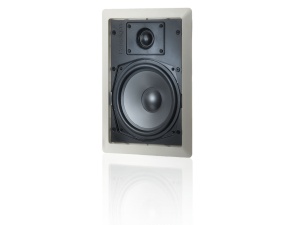

2-driver, 2-way in-wall / in-ceiling, IRP™ chassis / spring clamps

分频器

2nd-order electro-acoustic at 2.5 kHz

频率响应   On-Axis

±2 dB from 70 Hz - 20 kHz

频率响应   30° 离轴

±2 dB from 70 Hz - 18 kHz

高音单元

25-mm (1 in) silk dome

Mid/Bass Frequency Driver

165-mm (6-1/2 in) mineral-filled polypropylene cone

低音下潜

55 Hz (DIN)

灵敏度   房间/消声室

89 dB / 85 dB

阻抗

Compatible with 8 ohms

合适的放大器功率范围 Range

15 - 80 watts

最大输入功率

50 watts

颜色

White, paintable

重量

4.9 lbs. (2.2 kg)

Overall 尺寸

11.25" (28.5cm) Height
8.1875" (20.8cm) Width

Cut-Out 尺寸

10" (25.4cm) Height
7" (17.8cm) Width

最小安装深度
Depth required is the distance
between 1/2" drywall, or similar material.

2.5625" (6.5cm)
