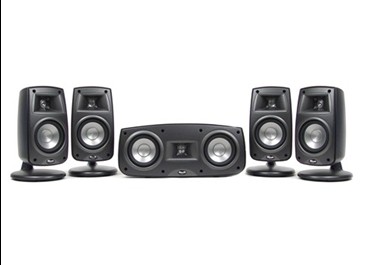

Quintet III 5.0卫星系统
Specifications
| FREQUENCY RESPONSE | Satellite: 120Hz-23kHz Center: 125Hz-23kHz |
| POWER HANDLING | Satellite: 50 watts (200 watts peak) Center: 75 watts (300 watts peak) |
| SENSITIVITY | Satellite: 91dB@2.83 volts/1 meter Center: 94dB@2.83 volts/1 meter |
| NOMINAL IMPEDANCE | 8 ohms compatible |
| CROSSOVER FREQUENCY | Satellite: 2800Hz Center: 2700Hz |
| TWEETER | One .75" (1.9 cm) neodymium magnet compression driver |
| HIGH FREQUENCY HORN | 90(d) x 40(d) Tractrix Horn |
| MIDRANGE | One 3.5" (8.9 cm) magnetically shielded woofer |
| ENCLOSURE TYPE | Bass-reflex via rear-firing port |
| DIMENSIONS | Satellite: 8.3" (21.1cm) H x 5" (12.7cm) W x 6.3" (16cm) D Center: 5" (12.7cm) H x 12" (30.5cm) W x 6" (15.2cm) D |
| MOUNTING | Satellite: Base swivels for on-wall mounting via keyholes Center: Threaded insert |
| WEIGHT | Satellite: 3.5 lbs (1.6 kg) Center: 5.5 lbs (2.5 kg) |
| BUILT FROM | 2005 |
| BUILT UNTIL | 2009 |
