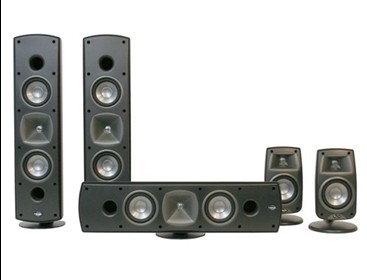

Quintet SL 挂壁5.0卫星系统
Specifications
| FREQUENCY RESPONSE | LCR: 80Hz-23kHz +/-3dB Satellite: 120Hz-23kHz +/-3dB |
| POWER HANDLING | LCR: 50 watts (200 watts peak) Satellite: 50 watts (200 watts peak) |
| SENSITIVITY | LCR: 93dB@2.83 volts/1 meter Satellite: 91dB@2.83 volts/1 meter |
| NOMINAL IMPEDANCE | 8 ohms compatible |
| HIGH FREQ CROSSOVER | LCR: 2600Hz Satellite: 2800Hz |
| HIGH FREQUENCY DRIVERS | LCR: 0.75" (1.9cm) Aluminum diaphragm compression driver mated to 80x80 square Tractrix® Horn Satellite: 0.75" (1.9cm) Aluminum diaphragm compression driver mated to 90x40 Tractrix® Horn |
| LOW FREQUENCY DRIVERS | LCR: Dual 3.5" (8.9cm) high-output woofers Satellite: 3.5" (8.9cm) woofer |
| ENCLOSURE TYPE | LCR: Bass-reflex via dual front-firing ports Satellite: Bass-reflex via rear-firing port |
| DIMENSIONS | LCR: 20.5" (52.1cm) H x 5.5" (14cm) W x 5.6" (14.2cm) D Satellite: 8.3" (21.1cm) H x 5" (12.7cm) W x 6.3" (16cm) D |
| MOUNTING | LCR: Dual keyholes and Triple 1/4"-20 threaded inserts Satellite: Base swivels for on-wall mounting via keyholes |
| WEIGHT | LCR: 6.6 lbs (3 kg) Satellite: 3.5 lbs (1.6 kg) |
| FINISHES | Black w/ Gray accents |
| BUILT FROM | 2007 |
