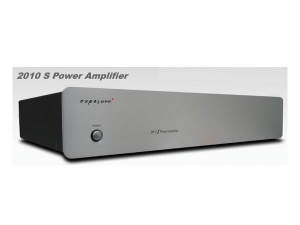

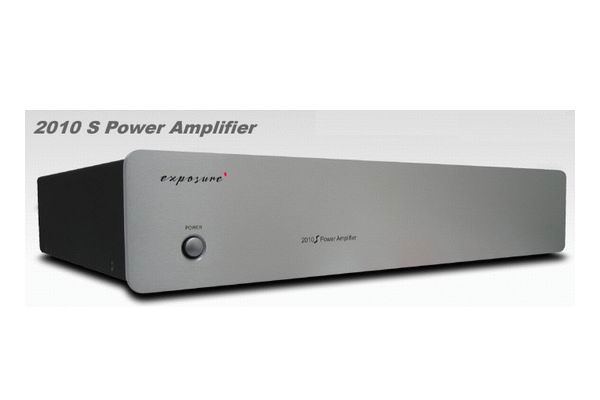

Model: 2010S Power Amplifier

Description:

• High capacity, 200VA custom-made toroidal power transformer & power supply capacitors
• Improved all-aluminum casework and extruded front panel to control resonance & stray electro-magnetic fields
• Very clean and extended low frequency performance
• Bi-wiring compatible and switchable to mono block mode thereby doubling output current for low impedence loads
• 75 watts per channel into 8 ohms

Specification:

• Power Output (Stereo): 75 watts per channel at 1kHz into 8 Ohms
• Input Sensitivity: 1V, gain +24dB
• Input Impedance: >18K Ohms
• Frequency Response: 20Hz – 20kHz ±0.5dB
• Total Harmonic Distortion: <0.02% at 1kHz, rated power
• Signal to Noise: >110dB, A weighted, ref rated output
• Channel Separation: >80dB, 20Hz – 20kHz
• Mains Supply: 110/120V or 220/240V, 50/60Hz (factory set)
• Power Consumption: 200VA, both channels driven, 8 ohm load
• Dimensions (H x W x D): 90 x 440 x 310mm
• Nett Weight (Unpacked): 7kgs
• Gross Weight (Packed): 9kgs
