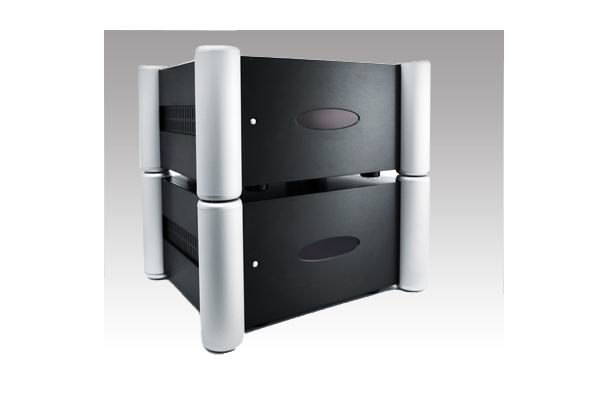

M.C.X Power Amplifier
Exceptional Control
• Monoblock design ensures low interaction between channels
• Very large toroidal power transformer (1400VA) with separate windings for the main supply to the power output stage and the critical, low level input circuit
• Separate supplies to the input stage and output stage. Input stage is regulated for high PSRR
• Switchable between balanced and unbalanced input modes
• Built-in protection against over-current, DC off-set and high temperature
• 12V input and output trigger system allows control of, or from, an audio-visual (AV) system
Specifications
• Power
300W into 8 Ohms @ 1kHz
600W into 4 Ohms @ 1kHz
• Gain 24dB, unbalanced mode
• Inputs (switchable) 1 x RCA unbalanced
1 x XLR balanced
• Outputs 2 pairs of loudspeaker sockets for bi-wiring
• Communication 12V trigger input
12V trigger output
RJ45 input ‘exlink’
RJ45 output ‘exlink’
• Power supply input Internally adjustable
for 110V–120V or
220V– 240V, 50 -60Hz
• Power consumption 500W @ full power into 8 Ohm load,
<1W on stand-by
•Size (W x D x H) 490 x 414 x 238mm
• Weight 35kg
|
