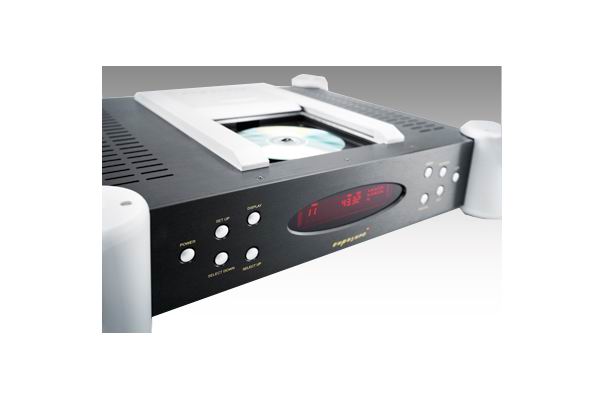

M.C.X  CD Player

Exceptional Fluidity

•4 separate DAC boards with PCM1704 multi-bit DACs, discrete transistor I-V and analogue filter. Each board has a separate regulated supply for DAC and audio circuits

•Multiple stages of voltage regulation for critical circuits

•Very low jitter master clock distribution with multiple voltage regulators and smoothing (CD mode)

•Re-clocking of critical digital signals to the DAC (CD mode)

•Large toroidal power transformer with separate windings for mechanism, CD display, DAC and audio outputs

 Specifications

Analogue outputs
• 4V RMS (XLR balanced)
• 2V RMS (RCA unbalanced)

• Signal to Noise Ratio > 110dB, CD source

• Distortion Less than 0.005%, CD source 1 x XLR balanced

• Outputs 2 pairs of loudspeaker sockets for bi-wiring

• Digital inputs 1 x AES, XLR, 110 Ohms
2 x BNC 75 Ohms
2 x Optical ‘Toslink’

• Digital outputs 1 x BNC, 0.5V, 75 Ohms, terminated
1 x RCA, 0.5V, 75 Ohms, terminated
1 x Optical

• Radio FM band 87.5 – 108MHz
DAB band III
DAB L band

• Communication External remote control receiver input
RJ45 input ‘exlink’
RJ45 output ‘exlink’

• Power supply input Internally adjustable for 110V–120V or
220V– 240V, 50 -60Hz

• Power consumption 35W with power on, 25W on stand-by
Size (W x D x H) 490 x 414 x 104mm
Weight 20kg

•Size (W x D x H) 490 x 414 x 104mm

• Weight  20kg
