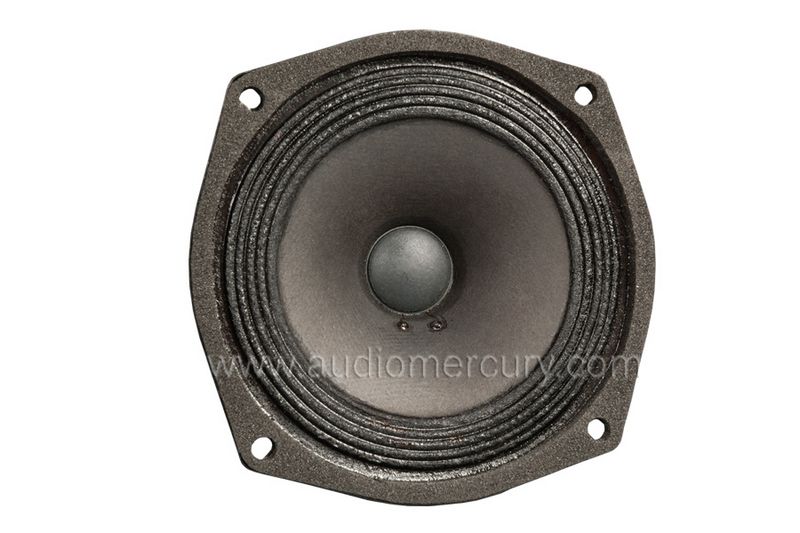

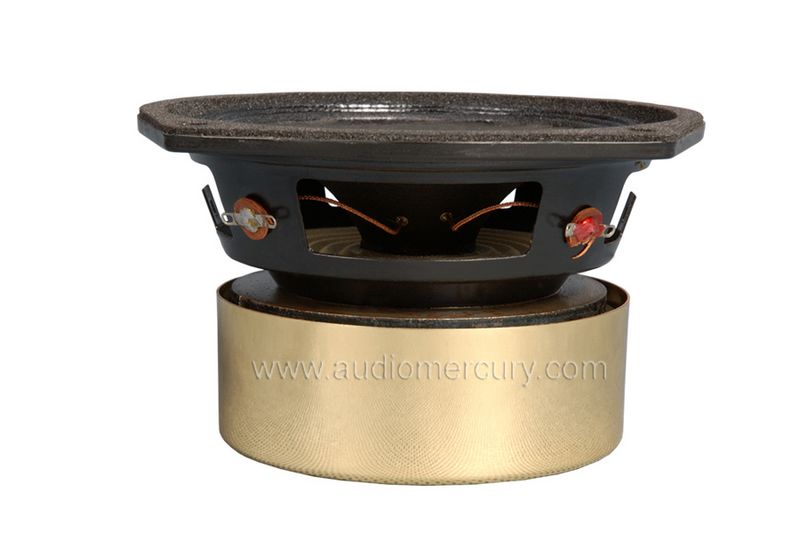

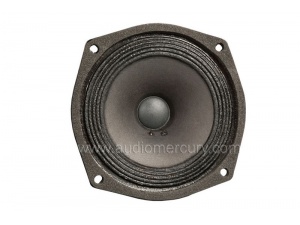

Supravox赛博威声 135LB 5英寸全频喇叭
|
135LB全频喇叭参数
|
|||
|
Efficiency 1W/1m at Fs
效率 1W/1m at Fs
|
95dB
|
Fs
|
80Hz
|
|
Frequency response
频响
|
80~18kHz
|
Re
|
5.2Ω
|
|
Impedance
阻抗
|
8Ω
|
Qts
|
0.3
|
|
Power max. RMS
最大不失真功率
|
35W
|
Qe
|
0.3
|
|
Weight
重量
|
1.7kg
|
Qm
|
3.6
|
|
Suspension
悬边
|
5层纸摺边
|
Vas
|
14L
|
|
Linear excursion
线性位移
|
6mm
|
Bl
|
5.4
|
|
Magnet diameter
磁铁直径
|
96mm
|
Cms
|
1
|
|
Magnetic field
磁通量
|
1.4T
|
Mms
|
3.3g
|
|
Diameter HP
喇叭直径
|
134/151mm
|
Sd
|
86.5cm2
|
|
Frame thickness
盆架厚度
|
铁 5mm
|
|
|
|
Diameter fixation holes
安装直径
|
140mm
|
|
|
|
Diameter drilling enclosure
箱体开孔直径
|
122mm
|
|
|
|
Depth HP
喇叭深度
|
80mm
|
|
|
|
备注：
上述之参数及曲线图由LAUD2软件测量所得，均由Supravox原厂提供。
|
|||
|
零售价RMB：￥3,786/对pair
|
|||
