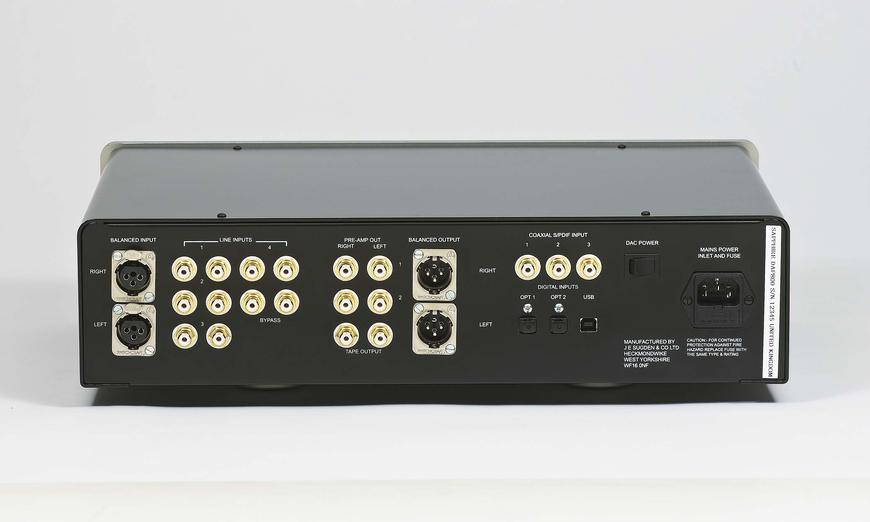

Analogue inputsFour line level inputs, one balanced input, bypass

Digital inputsThree SPDIF coax, two SPDIF optical, one USB type B Word length up to 24bit 96k

OutputsTwo line level outputs, one balanced output, tape output

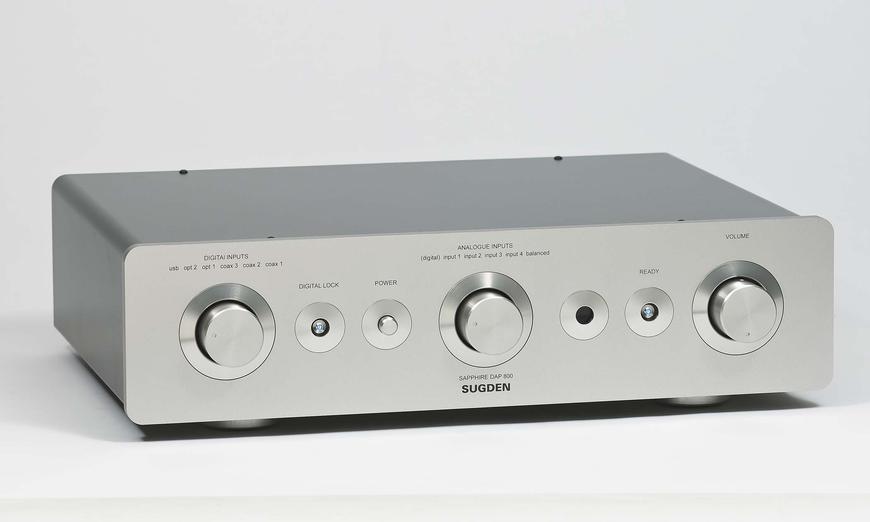

Volume controlMotorised remote control (analogue) RC5 compatible

Mains power switchingSeparate for analogue and digital circuits

Input sensitivity120mV for 1 Volt out

Maximum output9 Volts

Frequency response 0dB 15Hz – 98kHz, 3dB 8Hz – 125khz

Signal to noise >85dB

Distortion 0.05% @ 1kHz, 1Volt out

Nett Weight10 kgs

Dimensions120 x 430 x 340mm (hwd)

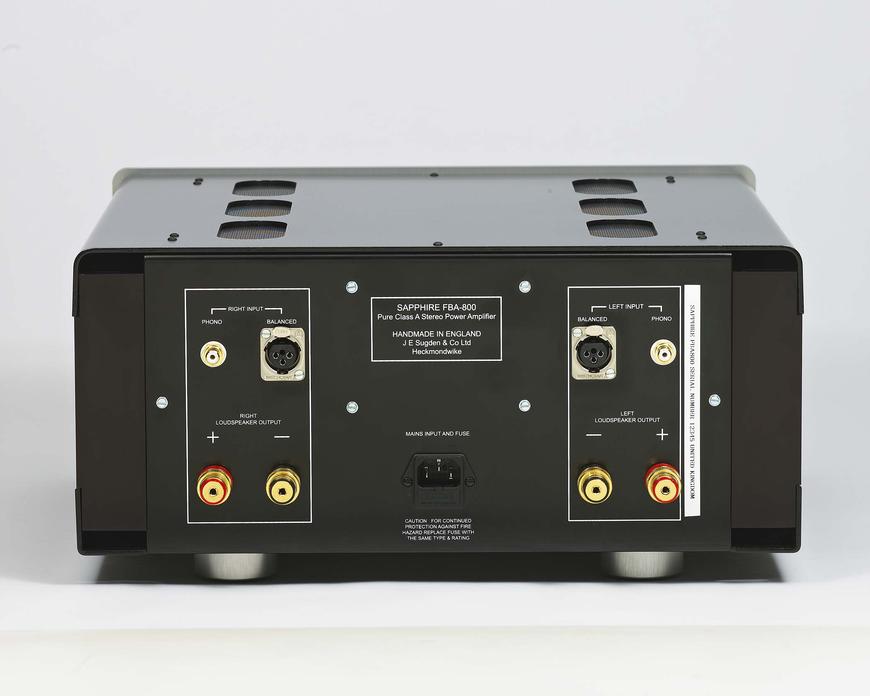

InputsStereo line level, stereo balanced

OutputsStereo pair multi way locking binding posts

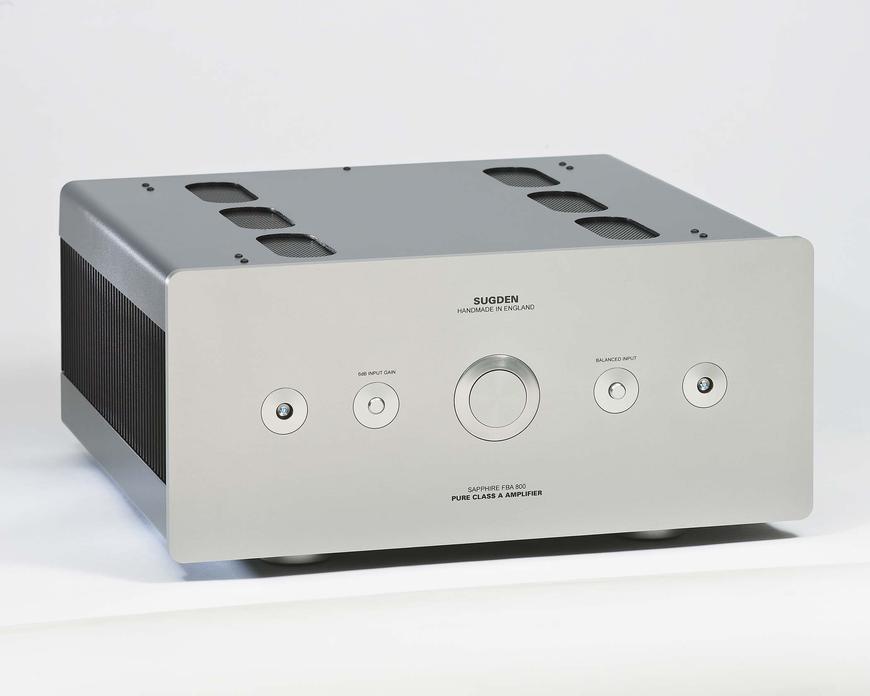

Front panel gain selector6dB input attenuation

Front Panel input selectorRCA or XLR

Input sensitivity735mV for full output

Power output40 Watts into 8 ohms both channels working

Frequency response0dB 20Hz – 80kHz

Bandwidth3dB points 6Hz – 113kHz

Signal to noise >96dB

Distortion at 1 Watt,1 kHz >0.05%

Net weight25kgs

Dimensions206 x 430 x 460mm (hwd)
