BHC英国 电容

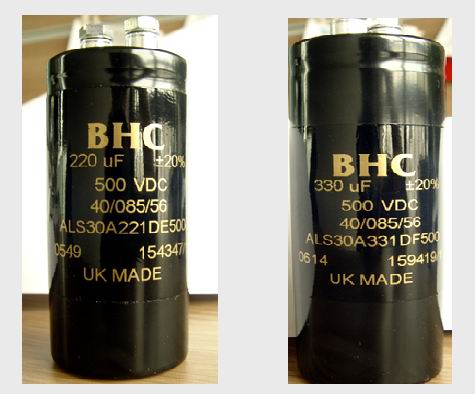

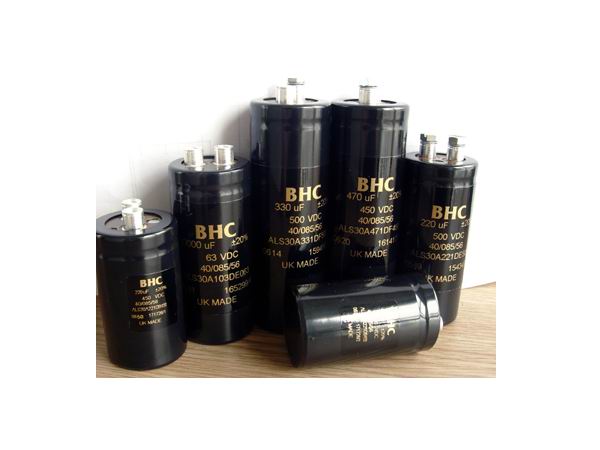

BHC ALS30系列 85摄氏度
Made in UK
BHC是世界著名的电解电容生产商，是英国最好的电解电容厂，其中ALS30系列是该厂的最高级的系列也是用在HIFI音响最好的系列。ALS30系列采用DNM SLIT FOIL专利设计，大大的减少了电容的失真特性、延长电解的使用寿命。ALS30系列的声音甜润、细腻、音乐味优秀。
技术参数
电容容差 + 20%
电容容差 + 20%
温度范围 -40度至+85度
绝缘电压 1000V直流
在85度进行耐久性能测试
使用额定电压和脉动电流 5000hrs
漏泄电流 0.006CV或10mA
接头 M5螺纹
(M6 77mm壳直径)
| 数 值 | 耐 压 | 尺 寸 (W x D) | 单价/只 |
| 33000uF | 16V | 62mm x 36mm | ￥160.00 |
| 47000uF | 16V | 82mm x 36mm | ￥165.00 |
| 6800uF | 16V | 105mm x 36mm | ￥205.00 |
| 150000uF | 16V | 105mm x 51mm | ￥310.00 |
| 470000uF | 16V | 146mm x 77mm | ￥888.00 |
| 15000uF | 25V | 52mm x 36mm | ￥155.00 |
| 22000uF | 25V | 62mm x 36mm | ￥165.00 |
| 47000uF | 25V | 105mm x 36mm | ￥230.00 |
| 10000uF | 40V | 52mm x 36mm | ￥150.00 |
| 15000uF | 40V | 62mm x 36mm | ￥160.00 |
| 22000uF | 40V | 82mm x 36mm | ￥220.00 |
| 33000uF | 40V | 82mm x 51mm | ￥280.00 |
| 47000uF | 40V | 82mm x 51mm | ￥330.00 |
| 100000uF | 40V | 75mm x 91mm | ￥610.00 |
| 220000uF | 40V | 146mm x 77mm | ￥1,200.00 |
| 4700uF | 63V | 52mm x 36mm | ￥150.00 |
| 6800uF | 63V | 62mm x 36mm | ￥170.00 |
| 10000uF | 63V | 82mm x 36mm | ￥230.00 |
| 15000uF | 63V | 82mm x 51mm | ￥280.00 |
| 22000uF | 63V | 82mm x 51mm | ￥320.00 |
| 47000uF | 63V | 75mm x 91mm | ￥580.00 |
| 100000uF | 63V | 146mm x 77mm | ￥1,050.00 |
| 2200uF | 100V | 52mm x 36mm | ￥130.00 |
| 4700uF | 100V | 82mm x 36mm | ￥185.00 |
| 6800uF | 100V | 105mm x 36mm | ￥260.00 |
| 10000uF | 100V | 82mm x 51mm | ￥310.00 |
| 22000uF | 100V | 105mm x 66mm | ￥560.00 |
| 47000uF | 100V | 146mm x 77mm | ￥1,050.00 |
| 470uF | 250V | 52mm x 36mm | ￥145.00 |
| 1000uF | 250V | 82mm x 36mm | ￥210.00 |
| 2200uF | 250V | 82mm x 51mm | ￥335.00 |
| 4700uF | 250V | 75mm x 91mm | ￥630.00 |
| 10000uF | 250V | 146mm x 77mm | ￥1,200.00 |
| 470uF | 350V | 82mm x 36mm | ￥185.00 |
| 1500uF | 350V | 105mm x 51mm | ￥330.00 |
| 4700uF | 350V | 98mm x 91mm | ￥960.00 |
| 220uF | 400V | 52mm x 36mm | ￥150.00 |
| 470uF | 400V | 82mm x 36mm | ￥185.00 |
| 1000uF | 400V | 82mm x 51mm | ￥365.00 |
| 2200uF | 400V | 75mm x 91mm | ￥600.00 |
| 4700uF | 400V | 146mm x 77mm | ￥1,080.00 |
| 220uF | 450V | 62mm x 36mm | ￥180.00 |
| 470uF | 450V | 105mm x 36mm | ￥250.00 |
| 1000uF | 450V | 105mm x 51mm | ￥430.00 |
| 2200uF | 450V | 105mm x 77mm | ￥950.00 |
| 3300uF | 450V | 146mm x 77mm | ￥1,200.00 |
| 150uF | 500V | 62mm x 36mm | ￥190.00 |
| 220uF | 500V | 82mm x 36mm | ￥220.00 |
| 330uF | 500V | 105mm x 36mm | ￥250.00 |
| 470uF | 500V | 82mm x 51mm | ￥360.00 |
| 680uF | 500V | 105mm x 51mm | ￥400.00 |
| 220uF | 600V | 82mm x 51mm | ￥1,300.00 |
