JBL4343(全钢磁）

Using

Rating of a mode

Scheme	4 ways, 4 loudspeaker bass-reflex scheme, and a bookshelf type
Unit	For low-pass: 38cm cone type (2231A) For inside low-pass: 25cm cone type (2121) For mid-high ranges: Horn type (2308+2307+2420) For high [ super-] regions: Horn type (2405)
Play frequency band	35Hz - 20kHz

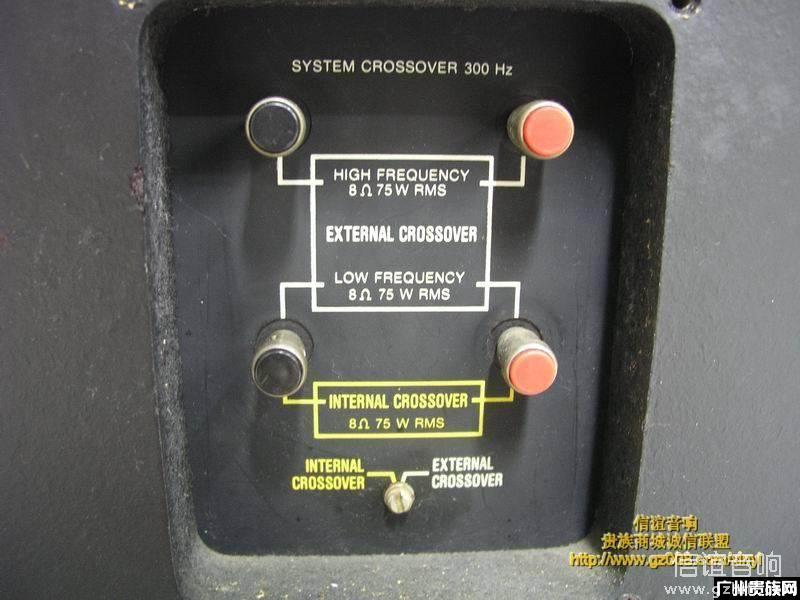

Cross over frequency	300Hz, 1250Hz, 9500Hz
Directivity	60 degrees x 30 degrees (16kHz)
Impedance	8ohms
Output sound pressure level	93dB (new Japanese Industrial Standard)
Allowable input (RMS)	At the time of a network: 75W 300Hz or less: 75W 300Hz or more: 75W
Enclosure dimension	Woofer: 156L Mid Woofer: 14L
Dimensions	Width 635x height 1051x depth of 435mm
Weight	79kg
Option	Channel divider 5234 (120,000yen) Filter substrate 52-5140 (5,000yen)
