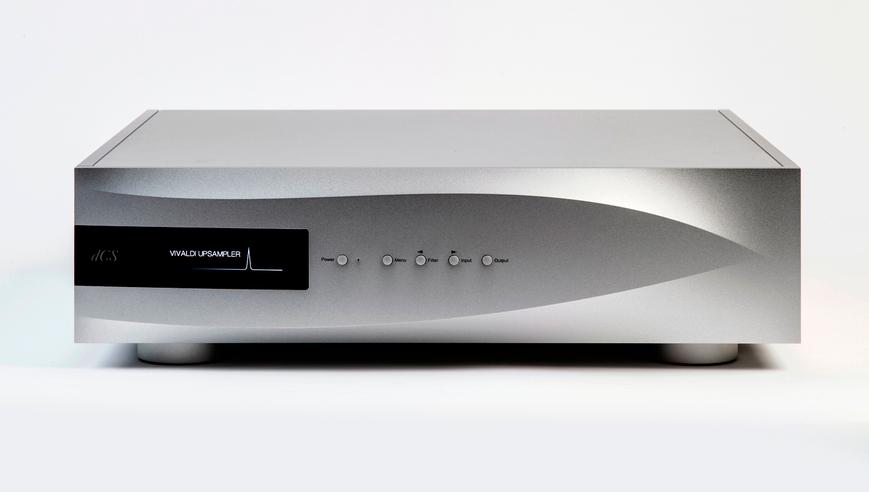

英国 DCS Vivaldi (维瓦尔第)升频

英国 DCS Vivaldi (维瓦尔第)升频

  • 价格请来电商议
  • 商品点击数:30163

简单描述:


联系人:杨锋 13636526661


联系地址:深圳市福田区车公庙NEO大厦C座24J

Vivaldi 維瓦爾第升頻器

�6�4 能從任何數碼訊源提取音樂,並把它們由原本的取樣率轉換至高解析度的 DXD(24bit / 352.8 或384KS/s)、DSD( 1 bit / 2.822 或3.07 MS/ s)或 PCM(24 bit / 192 kS/s)。

�6�4 連線網絡串流儲藏於電腦或經 UPnP™ 網絡之高解析度音樂檔案。附加的非同步 USB 輸入亦可直接連接至電腦,並支援高解析度音頻至 192kS/s 及 USB 上之 DSD。

�6�4 獲蘋果授權, 能支援及重播儲於 iPod / iPhone 內之數碼媒體,並繞過 iPod / iPhone 之內置 DAC,以取得最佳表現。

�6�4 多個可選擇的獨立數碼輸入及濾波選擇,把來自 CD 機的標準 CD 訊號,或其他高解析度的數碼流聲頻訊號,提升至一個前所未有的高水平


Technical Specifications

Type Digital-to-Digital Converter.
Colour Silver or Black.
Dimensions (WxDxH) 444mm/17.5” x 435mm/17.2” x 125mm/5.0”. Allow extra depth for cable connectors. Allow space for air flow around the unit.
Weight 14.2 kg/31.3lbs.

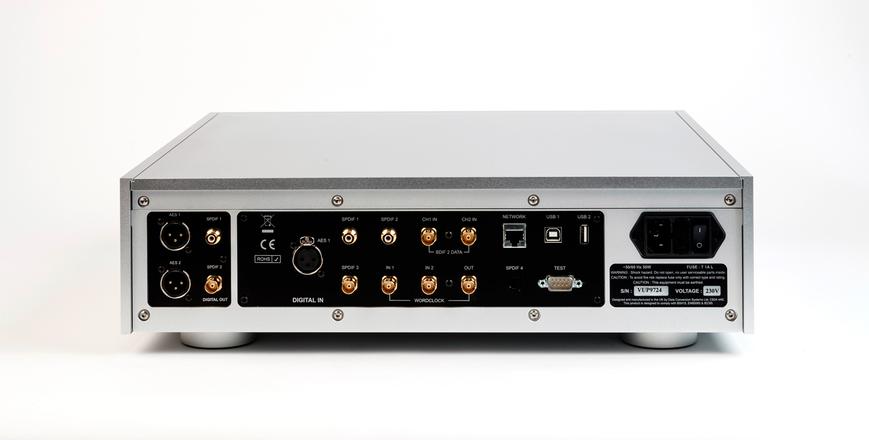

Digital Inputs Network interface on an RJ45 connector – Acts as UPnP™ renderer, streaming digital music from a NAS or local computer over a standard Ethernet network, decoding all major lossless formats including FLAC, WAV, AIFF, WMA up to 24 bit 192kS/s native sample rate plus DSD/64 in DFF or DSF formats. Other supported file formats include ALAC, MP3, M4a, AAC and OGG. Some formats are limited to lower sample rates.
USB 2.0 interface on a type B connector. Operates in Asynchronous USB mode, Audio Class 1 or Class 2. Class 2 mode will accept up to 24 bit PCM at 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kS/s and DSD/64 in DoP format.
USB-on-the-go interface on A-type connector, streams audio files from a USB flash drive or iPod/iPhone. Will stream up to 24 bit PCM at 44.1, 48, 88.2, 96, 176.4 or 192kS/s plus DSD/64 in DFF or DSF formats and operates in asynchronous USB mode.
1x AES3 on a 3-pin female XLR connector.
4x SPDIF on 2x RCA Phono, 1x BNC connectors and 1x TosLink optical connector.
1x SDIF-2 PCM interface on 2x BNC connectors + Word Clock.
All electrical digital inputs will accept PCM data at up to 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192kS/s & DoP.
The TosLink input and SDIF-2 interface are limited to a maximum of 96kS/s.
Digital Outputs 2x AES3 on 3-pin female XLR connectors. Each outputs 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192kS/s & DSD in DoP format, OR as a Dual AES pair at 88.2, 96, 176.4, 192, 352.8, 384kS/s or DoP.
2x SPDIF on RCA Phono and BNC connectors. Each outputs 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192kS/s & DoP.
Upsampling Rates Data from any input may be converted to 24 bit PCM at 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8 or 384kS/s or DSD (1 bit data at 2.822MS/s). The output sample rate must be equal to or greater than the input sample rate.
Word Clock I/O Word Clock input on 2x BNC connector. Accepts standard Word Clock at 32, 38.4, 44.1, 48, 88.2, 96, 176.4 or 192kHz. Sensitive to TTL levels.
Word Clock output on 1x BNC connector. Outputs standard Word Clock at a frequency equal to the (single wire) output data rate, or 44.1kHz when set to output DSD.
Spurious Responses Better than -100dB0 @ 20Hz-20kHz for Fs> 32kS/s, 20Hz-14kHz for 32kS/s.
Filters A choice of anti-alias filters is available for 11 popular conversions.
Software Updates Loaded from CD-R via PCM digital inputs or PC via USB1 input.
Local Control dCS Premium Remote handset is supplied with Vivaldi DAC. RS232 (controlled by a third party device). Vivaldi Controller App available for iOS.
Power Supply Factory set for 100, 115, 220 or 230V AC, 49-62Hz.
Power Consumption 15 Watts typical/18 Watts maximum.
