当前位置: 首页 > Hi-Fi落地箱 > 意大利 Sonus Faber/世霸 OLYMPICA II 落地箱

意大利 Sonus Faber/世霸 OLYMPICA II 落地箱

意大利 Sonus Faber/世霸 OLYMPICA II 落地箱

  • 本店售价:¥42000元
  • 商品点击数:32346

简单描述:全新行货保修


联系人:李先生 13829461623(微信同号) 业务QQ:1215102187


经销地址:汕头市龙湖区创意音响广场46号2楼42号 中文音响

Sonus Faber世霸全新“入门系列”Olympica,包括Olympica I、II、III三款,价格为中高级-高级市场。虽然Olympica系列是世霸音箱中的“入门级”,但都是Sonus Faber于意大利的厂房制造,包括采用了全新开发的高音系统,同时还采用了全新的"纯天然"的低音,该单元采用了多种天然纤维制造的轻量级三明治音盘、金属防尘帽,配合加强的钕磁铁系统,声音表现具有良好的空气感。

大音圈的铝镁音盘振膜低音,内里结构与表现都要比其他外表相同的同厂量产制品优胜得多。为了避免高音受到低音单元的振动影响,单元安装在独立的一块加厚面板之上,并包上非常柔软的黑色皮革。
世霸Olympica系列的箱体配合SonusFaber独有的最高级别的乐器级工艺制造,箱体设计采用了独特的创新的钻石切割面的"竖琴"式设计,箱体内部以特殊的粘稠绝缘材料,可以实现最高质量的约束层阻尼技术,座地箱配备调谐阻尼底座,能处理的低频分散性失真和寄生振动,实现"零振动传递"状态,让箱体的震动进一步有效降低,为喇叭提供稳固的发声基础。
加强主体配合特别设计的外部的“双翼”曲面层板,如乐器弧线型的箱体由多层薄夹板压合加工而成,实现如乐器级的音响回放特性。配合内部立体式空间设计,有效减少箱内驻波,让SonusFaber Olympica系列的箱体两侧没有平行面,打消箱内驻波,降低箱音的产生。箱体的外饰面延续了SonusFaber世霸的传统,前面板为小牛皮包裹的工艺,侧板用多层薄身的枫木片粘合和热加压弯成弧度板材组合而成,外层再配合乐器级木皮工艺,侧板装饰以晶亮的琴漆经过多重人手打磨,实现乐器级的品质,提供黑色和白色选择。SonusFaber Venere系列的分音器经过长时间调校,采用了定造电容、线圈;高级定制线及镀金端子,所有元件都经过精度配对,保证满足分音器的良好精度。
Olympica II 落地箱 技术参数:
SYSTEM
3 way floorstanding, paralaminar stealth flow vented loudspeaker.
CABINET
Enhanced “Lyre shape” design, progressive thickness triple curvature cabinet walls damped spread resonance spectrum system. Solid walnut vertical clamps.

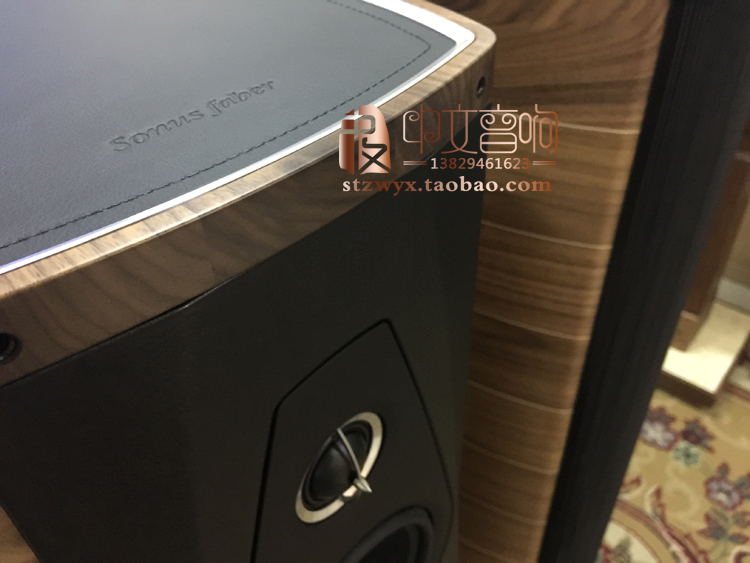

TWEETER
Sonus faber “Arrow Point” DAD (Damped Apex Dome, synthesis of the classic dome and ring transducer) 29XTR2. A Sonus faber designed 29 mm moving coil driver. The ultra dynamic linearity is given by the new Neodymium motor system.

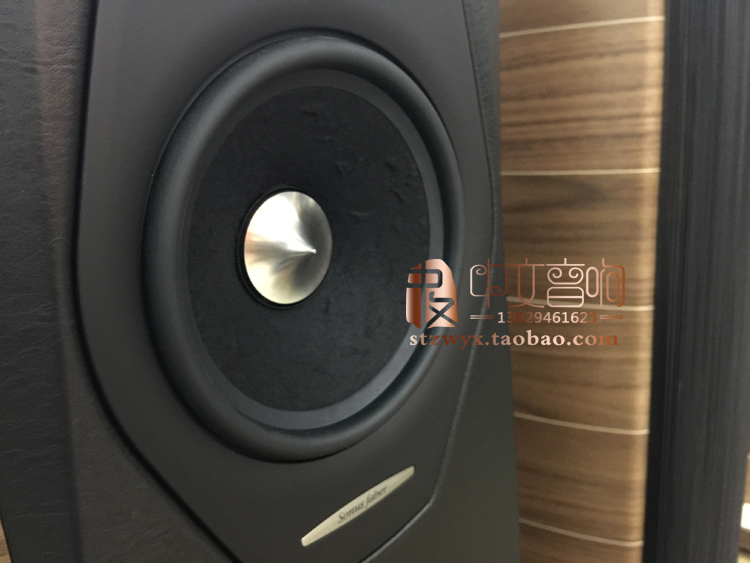

MIDRANGE
Sonus faber M15XTR. A totally Sonus faber designed 150 mm ultra dynamic linearity midwoofer. CCAW wire is used on a composite former “eddy current free” voice coil. The dynamically linear magnetic field motor incorporates triple Kellog/Goeller rings. A special custom diaphragm is made with a real time air dried non pressed blend of traditional cellulose pulp, kapok, kenaf and other natural fibers, developed according to the most natural sound. To further inhibit any residual cone coloration we are using a transparent viscous surface damping coating. Special coaxial anti-compressors is used, designed to remove cavity resonance and distortions.

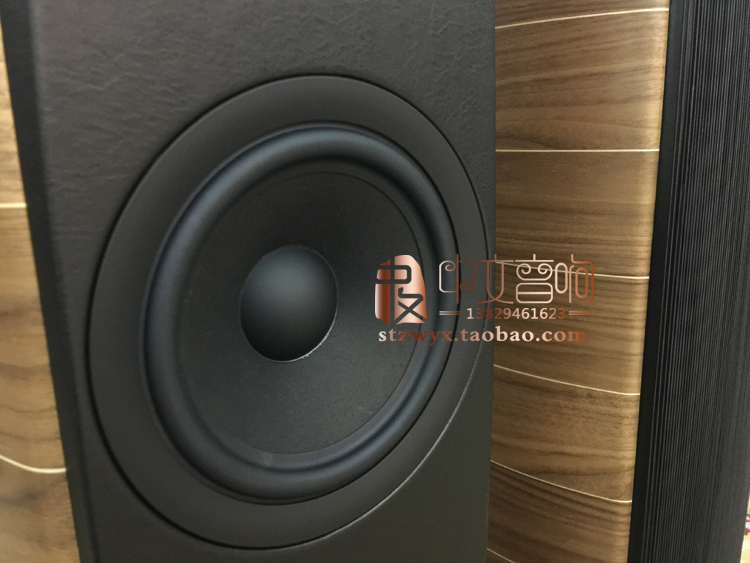

WOOFER
Sonus faber woofer W18XTR  is a direct descendant of the 9” speakers used in “Aida”. The salient aspect of the woofer, is to merge high definition, the prerogative of the 'sandwich' cones, and an identity in synergy with the sound of the midrange. This goal was reached by developing a “sandwich” membrane that combines a "heart" in hi-tech rigid syntactic foam with external layers in treated cellulose pulp. The 1.5” voice coils “controlled Eddy Current”, together with the powerful long stroke magnetic motor, are guarantees for excellent performance, both from the dynamic point of view and that of linearity.
CROSS-OVER
Non-resonant “progressive slope” design, optimized amplitude/phase response for optimal space/time performance. “Paracross topology” on both tweeter hi-pass and midrange band pass, cross-over points 250 hz - 2.500 Hz.
FREQUENCY RESPONSE
40 Hz – 30.000 Hz, tuning port included.
SENSITIVITY
88 dB SPL (2.83 V/1m). NOMINAL
IMPEDANCE
4 ohm.
SUGGESTED AMPLIFIER POWER OUTPUT
50W – 250W, without clipping.
LONG-TERM MAXIMUM INPUT VOLTAGE (IEC-268-5)
20V rms.
FINISH
Natural walnut or graphite multicoated with medium gloss ecologically sensitive lacquer.
DIMENSIONS
1055x370x472mm
WEIGHT
68 kg Net, 71 kg Gross
