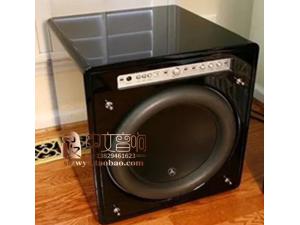

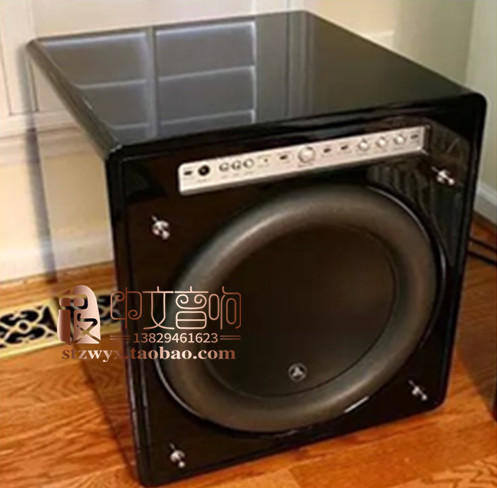

美国 JL 捷力 Fathom F113 V2 重低音/低音炮

美国 JL 捷力 Fathom F113 V2 重低音/低音炮

  • 价格请来电商议
  • 商品点击数：34656

简单描述：全新行货保修


联系人：李先生 13829461623(微信同号) 业务QQ：1215102187


经销地址：汕头市龙湖区创意音响广场46号2楼42号 中文音响

汕头中文音响淘宝店链接:https://item.taobao.com/item.htm?spm=a1z10.3-c.w4002-2290138870.9.4d721797PC210W&id=558047170947

Powered Subwoofer with 13.5-inch Subwoofer Driver, 3000 watts

The Fathom f113v2 is a heavyweight subwoofer capable of filling the most demanding rooms with powerful low-frequency output and reference-class sound quality. The combination of an ultra-long throw W7 13.5-inch driver and a very powerful switching amplifier give it the kind of output normally associated with far larger subwoofer systems.

Because it is built with the same driver and amplifier technology as our flagship Gotham®, the f113v2 delivers a tremendous level of sound quality. Low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.

A complete set of signal processing features is easily accessible on the front surface of every Fathom. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim and our powerful Digital Automatic Room Optimization (D.A.R.O.) system. A calibrated microphone is included for the D.A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Fathom® as a slave unit.

Finish: Gloss Black

Grille finish: Black fabric

Enclosure Construction: MDF

Enclosure Type Sealed
Enclosure Finish Black Gloss
Frequency Response (Anechoic) 20 - 86 Hz (±1.5dB) -3 dB at 18 Hz / 127 Hz -10 dB at 16 Hz / 154 Hz
Effective Piston Area (Sd) 107.35 sq in / 0.0693 sq m
Effective Displacement 386 cu in / 6.3 L
Amplifier Power 3000 W RMS short-term
Power Mode(s) Off, On or Automatic (Signal-Sensing)
Light Modes Off, On or Dim

Signal Processing

Unbalanced Inputs Stereo or Mono (two RCA jacks)
Balanced Inputs Stereo or Mono (two female XLR jacks)
Speaker/High-Level Inputs N/A
Input Grounding Isolated or Grounded
Input Modes Master or Slave
Level Control Reference (fixed gain) or Variable, from full mute to +15dB over reference gain
Filter Mode(s) Low-Pass
Filter Slope(s) 12/24 dB/octave
Filter Frequency Range 30 Hz - 130 Hz
Filter Defeat Function Yes
Polarity 0 or 180 degrees
Phase Variable, 0 - 280 degrees
Extreme Low Frequency (E.L.F.) Trim Variable, -12 dB to +3 dB at 25 Hz
Line Outputs N/A
Output to Slave Balanced (one male XLR jack)
Calibration Mode Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone

Physical Specification

Width (W) 16.50 in / 419 mm
Height (H) 19.25 in / 489 mm
Depth (D) 19.25 in / 489 mm
Net Weight 133 lb / 60 kg
