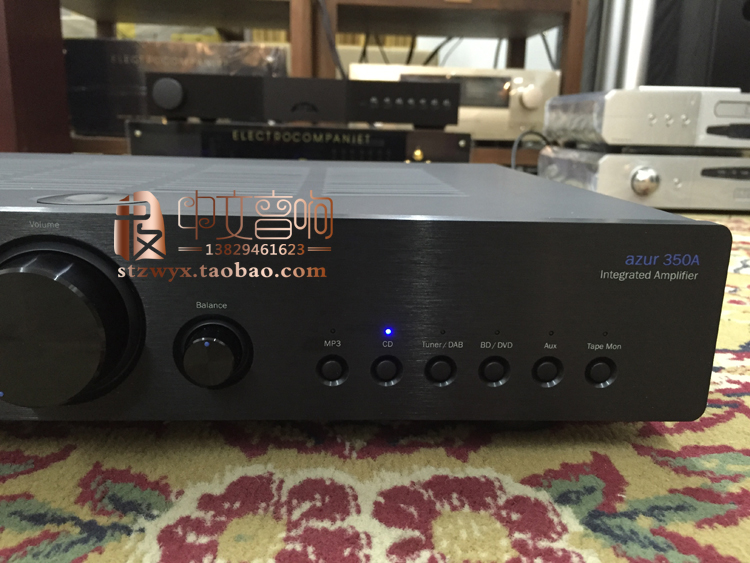

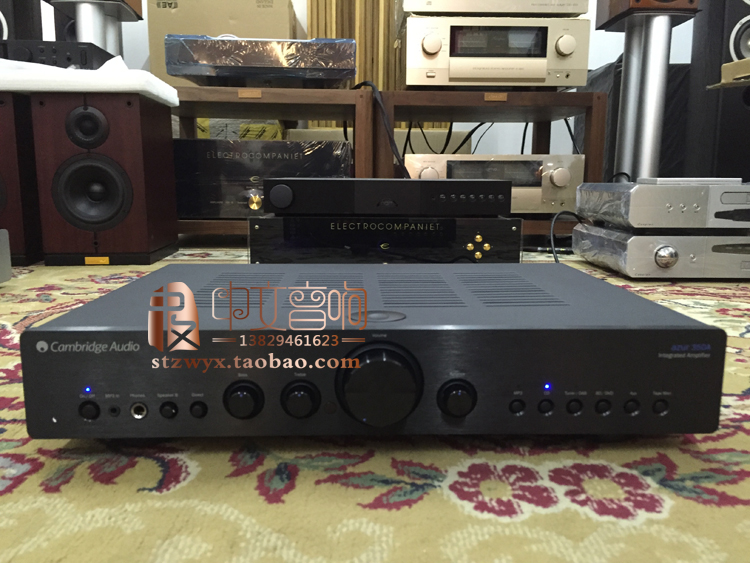

英国剑桥Azur 350A功放

英国剑桥Azur 350A功放

45 Watts RMS into 8 Ohms

5 inputs, 1 Tape in, 1 Record Output

Audiophile grade toroidal transformer and substantial extruded heatsink

New precision ALPs ‘black box’ volume pot for improved low level channel balance and stereo imaging

New low dissipation polypropylene signal capacitors and custom made electrolytic capacitors in critical positions

Brand new wrap-around casework design with substantially thicker brushed aluminium front panel and new control knob design

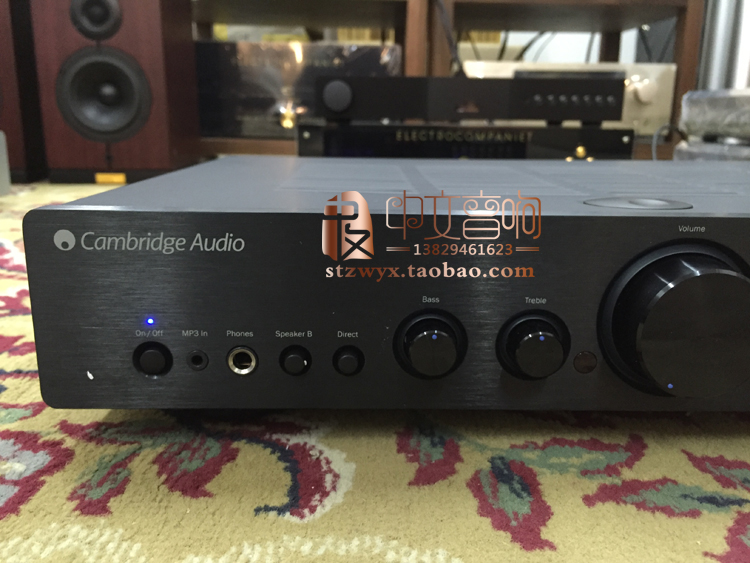

Front-mounted iPod / MP3 player connection

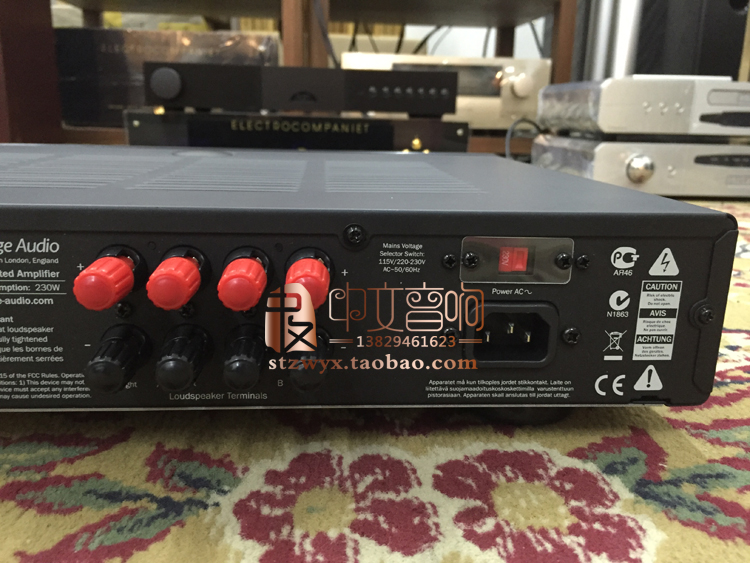

Speaker B connections for larger systems or simple multi-room set-ups.

Supplied with new Navigator remote – also controls 350C CD player and iPods in CA or Apple docks

Available in silver and black brushed finishes

Azur 350A integrated amplifier:

Power Output:	45 watts (into 8 ohms)
THD (unweighted):	<0.02%@1kHz, 80% of rated power <0.15% 20Hz – 20kHz, 80% of rated power

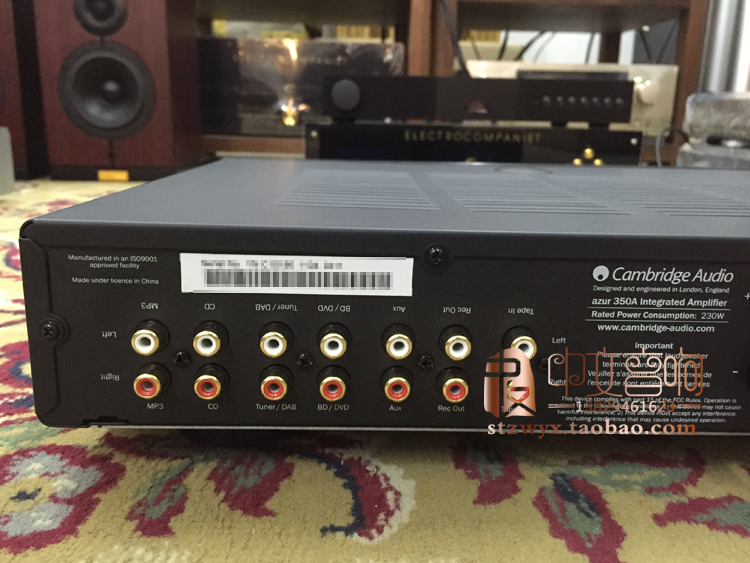

Inputs:	5 inputs, 1 Tape Input, ¼’’ headphone input, 3.5mm MP3 input

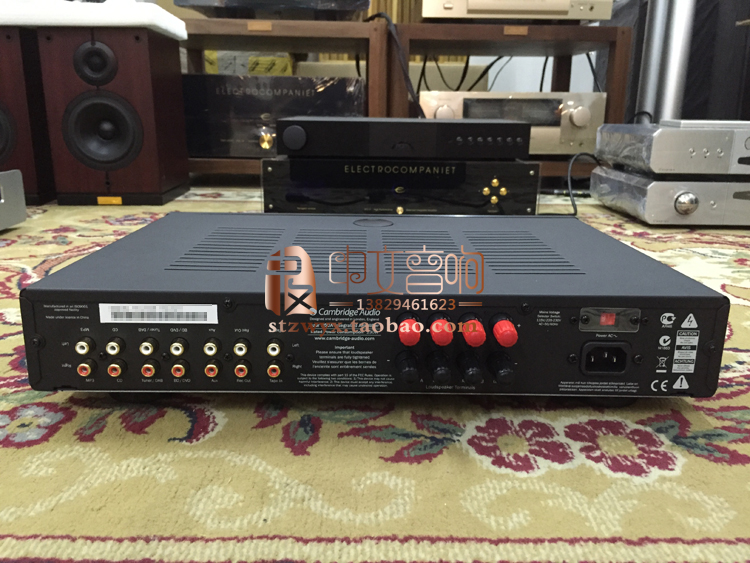

Outputs:	Speaker A & B outputs, 1 Record Output
Frequency Response:	(-1dB) 5Hz – 50kHz
S/N ratio (ref 1w):	>92dB (unweighted)
Input Impedance:	47k ohms
Max. Power Consumption:	320W
Bass/Treble controls:	Shelving, ultimate boost/cut +/-10dB @ 20Hz and +/-6dB @ 20kHz
Dimensions (H x W x D):	86 x 430 x 340mm (3.4 x 16.9 x 13.4’’)
Weight	6.0kg (13.2lbs)
