英国Rega/君子DAC-R USB 解码器_DAC解码器_中文音响_发烧音响_正品发烧音响_音响发烧站 - 音响贵族网

当前位置: 首页 > DAC解码器 > 英国Rega/君子DAC-R USB 解码器

DAC 2x Wolfson WM8742

Frequency Response (100KΩ load) Filter 1 selected

Low data rate 44.1/48kHz = 10Hz -0.05dB to (44.1K) 20.02kHz (48K) 21.7kHz -0.03dB
Medium data rate 88.2/96kHz = 10Hz -0.05dB to (88.1K) 28.7kHz (96K) 31.2kHz -3dB
High data rate 176.4/192kHz = 10Hz -0.05dB to (176.4K) 44.1kHz (192K) 47.7kHz -3dB

Maximum output level = 2.175V into 100KΩ load

Bit resolution (all inputs) 16 to 24bit

Supported data rates = 32, 44.1, 48, 88.2, 96, 176.4, 192kHz

Total Harmonic Distortion all inputs (24bit 96kHz) = 0.006% @ 1kHz

Signal to Noise Ratio -105dB (relative to maximum output level with a 100Hz to 22kHz bandwidth)

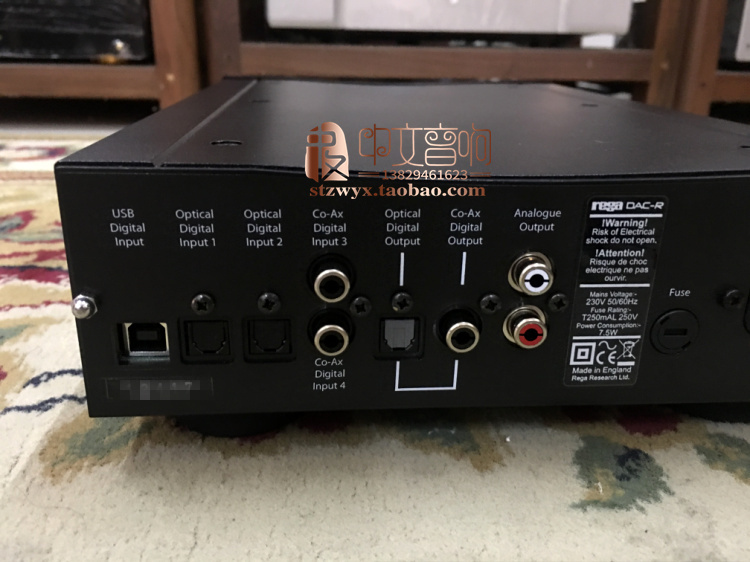

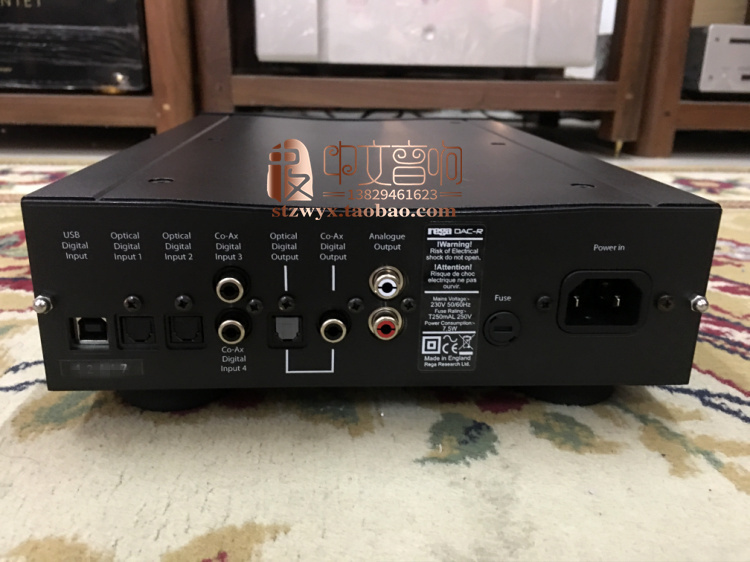

Digital inputs
USB Asynchronous Isolated (24bit 44.1/48/88.2/96/176.4/192kHz)
Input 1 Optical/Toslink (24bit 32/44.1/48/88.2/96/176.4/192kHz)
Input 2 Optical /Toslink (24bit 32/44.1/48/88.2/96/176.4/192kHz)
Input 3 Isolated 75Ω Co-axial (24bit 32/44.1/48/88.2/96/176.4/192kHz)
Input 4 Isolated 75Ω Co-axial (24bit32/44.1/48/88.2/96/176.4/192kHz)

Digital SPDIF outputs (via receiver & PLL)
Optical/Toslink
Isolated 75Ω Co-axial

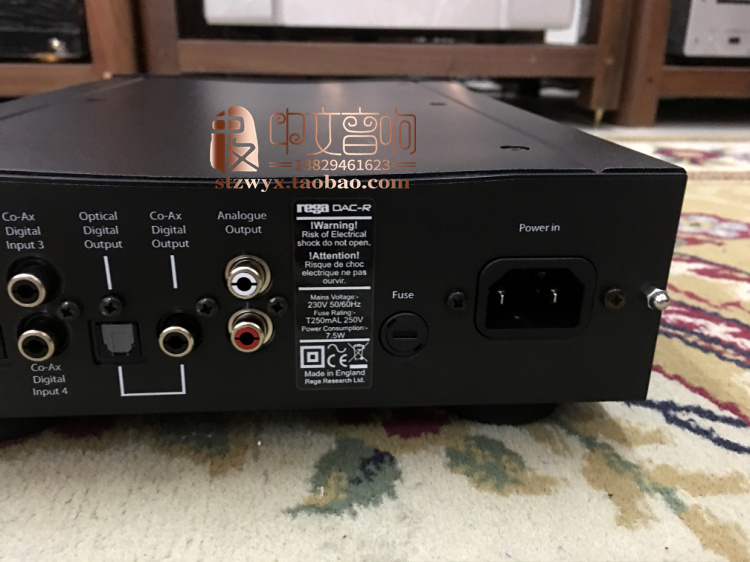

Power 230v/115v/7.6W
Dimensions W 215mm x D 320mm x H 80mm
Remote NEC system (6E91)
Weight 4.0 Kg
