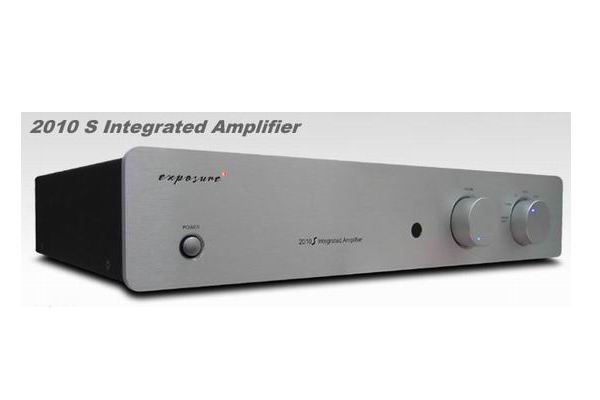

Model: 2010S Integrated Amplifier
Description:
- High capacity, 200VA custom-made toroidal power transformer & power supply capacitors
- Improved all-aluminium casework and extruded front panel to control resonance & stray electro-magnetic fields
- High quality capacitors used in the signal path
- Uniquely tuned short signal and power supply path PCB
- Cascode circuitry untilised for improved power supply immunity
- Sanken bipolar output transistors for dynamic and vivid performance
- Separate pre-amp output with class A buffer stage
- Bi-wiring compatible
- 75 watts per channel into 8 ohms
- Improved SYSTEM remote control
Specification:
- Power Output (1kHz): 75 watts per channel RMS 8 Ohms
- Input Sensitivity: 250mV
- Input Impedance: >14K Ohms, line input
- Pre-Amplifier Output: gain +18dB
- Frequency Response: 20Hz – 20kHz ±0.5dB
- Total Harmonic Distortion: 0.05% at 1kHz, rated power
- Signal to Noise: >100dB, A weighted, ref rated output
- Channel Separation: 20Hz – 20kHz, >60dB
- Mains Supply: 110/120V or 220/240V, 50/60Hz (factory set)
- Dimensions (H x W x D): 90 x 440 x 310mm
- Nett Weight (Unpacked): 7 kgs
- Gross Weight (Packed): 9 kgs
|
