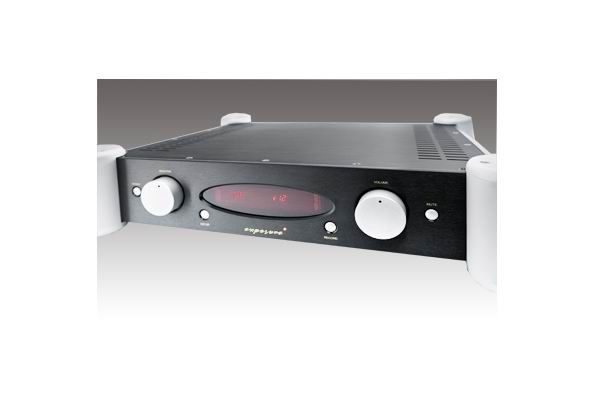

M.C.X Per-Amplifier
Exceptional Finesse
• Mono printed circuit board (PCB) construction to ensure low cross-talk between channels
• Available with either MM or MC phono cards fitted
• All discrete transistor audio circuits
• Input switching and volume attenuation by high quality reed relays
• X1 gain setting for easy integration into an audio-visual (AV) system when the input is in AV mode
• 12V input and output trigger system allows control of, or from, an AV system
Specifications
• Inputs
Phono MM or MC by plug-in board (XLR or RCA input sockets) 5 x line level inputs, 250mV I x CD input, XLR balanced connector • Outputs 2 x XLR, balanced pre-out
1 x RCA, pre-out 1 x RCA, tape output • Communication External remote control receiver input
12V trigger input 12V trigger output RJ45 input ‘exlink’ RJ45 output ‘exlink’ • Power supply input Internally adjustable for 110V–120V or
220V– 240V, 50 -60Hz • Power consumption 35W with power on, 25W on stand-by
• Size (W x D x H) 490 x 414 x 104mm
• Weight 20kg
|
![]() |
