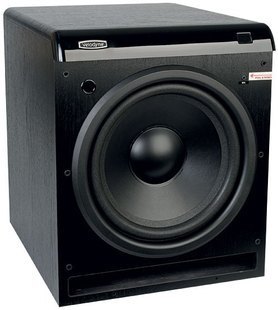

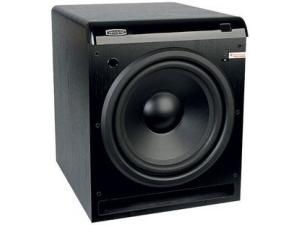

美国威力登 CHT-12Q超低音 美国威力登CHT-12Q超低音
The CHT-Q Series subwoofers are the ideal combination of technology and an intuitive user interface, and they offer incredible value. Quickly and easily add a powerful, feature-rich subwoofer to your entertainment system. Use the included remote control to maximize the bass in your room from any source, while a clearly visible front LED display instantly confirms your choice. The CHT-Q subwoofers deliver great bass...made easy.
CHT-Q Series |
||||
Specifications |
CHT-8Q |
CHT-10Q |
CHT-12Q |
CHT-15Q |
Amplifier: (Class D) |
360 watts Dynamic 180 watts RMS Power |
390 watts Dynamic 195 watts RMS Power |
450 watts Dynamic 225 watts RMS Power |
1500 watts Dynamic 750 watts RMS Power |
Woofer: |
8” (20.3 cm) forward firing (6.3” piston diameter) |
10” (24.5 cm) forward firing (8.2” piston diameter) |
12” (30.5 cm) forward firing (9.7” piston diameter) |
15” (38 cm) forward firing (12.7”piston diameter) |
Magnet Structure: |
2.5 lbs |
2.5 lbs |
3.5 lbs |
4.4 lbs |
Frequency Response: Overall +/- 3 dB |
17 – 240 Hz 32 – 120 Hz |
16 – 240 Hz 28 – 120 Hz |
14.6 – 240 Hz 25 – 120 Hz |
14 – 240 Hz 23 – 120 Hz |
Voice Coil: |
2-Layer copper |
2-Layer copper |
2-Layer copper |
2.5” 4-Layer copper |
Cone: |
Reinforced fiber |
Reinforced fiber |
Reinforced fiber |
Reinforced fiber |
Speaker-Level Pass-Through: |
Fixed at 120 Hz high-pass |
Fixed at 120 Hz high-pass |
Fixed at 120 Hz high-pass |
Fixed at 120 Hz high-pass |
LowPassCrossover:
|
40 Hz – 120 Hz adjustable (12 dB octave, 24 dB ultimate) |
40 Hz – 120 Hz adjustable (12 dB octave, 24 dB ultimate) |
40 Hz – 120 Hz adjustable (12 dB octave, 24 dB ultimate) |
40 Hz – 120 Hz adjustable (12 dB octave, 24 dB ultimate) |
Outputs: |
Line-Level |
Line-Level |
Line-Level |
Line-Level |
Inputs: |
Gold plated line-level |
Gold plated line-level |
Gold plated line-level |
Gold plated line-level |
Digital Phase: |
0º, 90º, 180º, 270º |
0º, 90º, 180º, 270º |
0º, 90º, 180º, 270º |
0º, 90º, 180º, 270º |
Cabinet Design: |
Extended Excursion Slot-loaded Bass-Reflex |
Extended Excursion Slot-loaded Bass-Reflex |
Extended Excursion Slot-loaded Bass-Reflex |
Extended Excursion Slot-loaded Bass-Reflex |
Auto On/Off |
Yes |
Yes |
Yes |
Yes |
Removable Grille |
Yes |
Yes |
Yes |
Yes |
Video Shielding |
No |
No |
No |
No |
LED Display |
Yes |
Yes |
Yes |
Yes |
Accessories: |
Mic, mic stand and remote control |
Mic, mic stand and remote control |
Mic, mic stand and remote control |
Mic, mic stand and remote control |
Dimensions (H/W/D): (cm) with grille |
15.25” x 12” x 16.375” 38.7 x 30.5 x 41.6 |
16” x 15” x 18.25” 40.6 x 38.1 x 46.4 |
18” x 15” x 19.5” 45.7 x 38.1 x 49.5 |
21 x 18.375” x 20.75” 53.3 x 46.7 x 52.7 |
Shipping Weight: (approx) |
44 lbs. (2- kg) |
55 lbs. (25 kg) |
61 lbs. (28 kg) |
75 lbs. (34 kg) |
Warranty: (parts/labor) |
Three years (electronics) Five years (drivers) |
Three years (electronics) Five years (drivers) |
Three years (electronics) Five years (drivers) |
Three years (electronics) Five years (drivers) |
Specifications are subject to change without notice. |
